Marathon

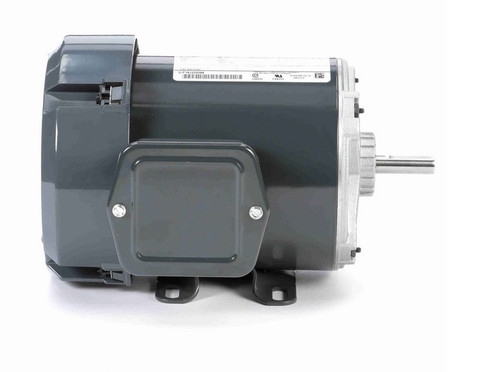

K153 Marathon 1/3 hp 208-230/460V 3600 RPM 3-Phase 48 Frame TEFC (rigid base) Motor
(No reviews)
Write a Review
Write a Review
Marathon
K153 Marathon 1/3 hp 208-230/460V 3600 RPM 3-Phase 48 Frame TEFC (rigid base) Motor
$366.85
$317.40
SKU
K153
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
1/3 HP
RPM
3600
Phase
Three Phase
Frame
48
Enclosure
TEFC
Hertz
60 Hz
Amperage
1.8/0.9 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class B
Mounting
Rigid Base
K153 Marathon 1/3 hp 208-230/460V 3600 RPM 3-Phase 48 Frame TEFC (rigid base) Motor
The K153 Marathon motor is a general-purpose, three-phase motor designed for industrial applications requiring reliable performance. It replaces Leeson models C4T34FB5B and 102684.00, making it suitable for equipment with standard mounting and electrical requirements.
Key Specifications
- Horsepower: 1/3 hp
- RPM: 3600
- Voltage: 208-230/460 V, 60 Hz
- Amperage: 1.5-1.8/0.9 A
- Enclosure: Totally Enclosed Fan-Cooled (TEFC)
- Frame / Diameter: NEMA 48 frame
- Shaft Dimensions: 1/2" diameter x 1 1/2" length, keyed
- Rotation: Reversible
- Bearings: Ball bearings
Product Features & Fitment
This motor features a rigid base mount for secure installation and includes a keyed shaft for reliable coupling. It is equipped with Class B insulation and does not have thermal overload protection. Wiring diagrams are provided on the motor nameplate for ease of installation.
Cross Reference
- Leeson C4T34FB5B, 102684.00
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
