sale
Marathon

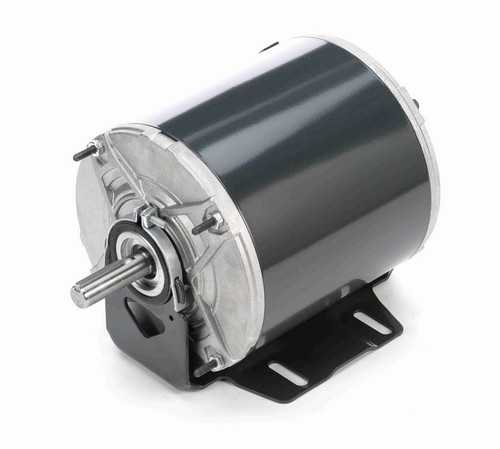

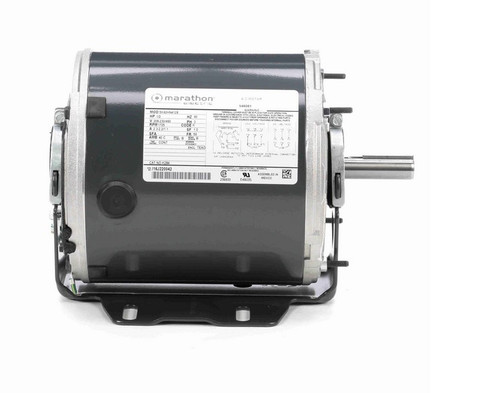

K284 Marathon 1/2 hp (1 speed) 208-230/460V 1800 RPM TEAO 56 Frame 3 Phase Resilient Base Motor
(No reviews)
Write a Review
Write a Review
Marathon
K284 Marathon 1/2 hp (1 speed) 208-230/460V 1800 RPM TEAO 56 Frame 3 Phase Resilient Base Motor
$583.40
$503.13
SKU
K284
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
1/2 HP
RPM
1800
Phase
Three Phase
Frame
56
Enclosure
TEAO
Hertz
60 Hz
Amperage
2.2/1.2 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B
- 1/2 hp 1800 RPM, 2.3-2.2/1.2 amps, 208-230/460 Volts 60 Hz, 3 Phase
- NEMA 56 Frame Keyed Shaft 1 7/8" x 5/8" Diameter, 1 speed
- Service Factor = 1.0, Thermal Protection = None
- Resilient Base, Reversible, Ball Bearings, Class B insulation
- 1 Year Manufacture Warranty
Blower motors are used to blow air inside of buildings. Shaft may be vertical or horizontal. TEAO = Totally Enclosed Air-Over. 5K42HN4128
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 56 |
| Enclosure | TEAO |
| Hertz | 60 Hz |
| Amperage | 2.2/1.2 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
