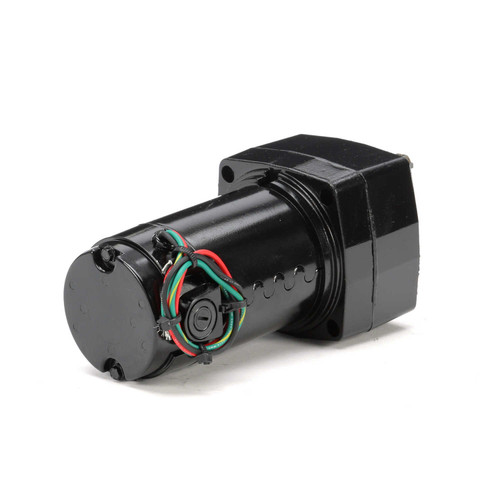

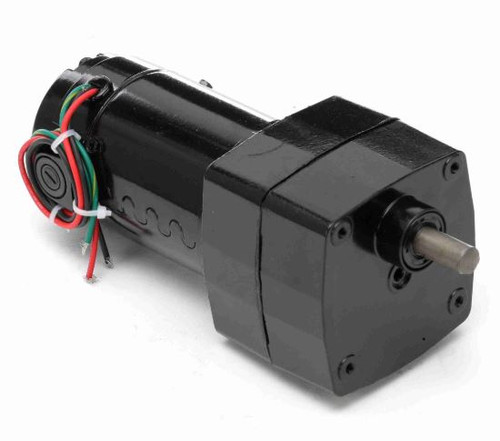

M1125037.00 Leeson | Parallel Shaft 1/17 hp, 30 RPM 180 Volts DC TENV Electric Gear Motor

M1125037.00 Leeson Parallel Shaft 1/17 hp, 30 RPM 180 Volts DC TENV Electric Gear Motor

This Leeson electric gear motor delivers reliable performance with a 1/17 horsepower rating and a low-speed output of 30 RPM. Designed for industrial applications requiring precise torque and controlled speed, it features a parallel shaft configuration and is compatible with Leeson speed controls.

Key Specifications

• Horsepower: 1/17 hp
• RPM: 30
• Voltage: 180 Volts DC
• Amperage: 0.36 amps
• Enclosure: TENV (Totally Enclosed Non-Ventilated)
• Shaft Dimensions: 1/2" diameter x 1" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The gear motor incorporates precision-machined in-line steel gears, starting with a steel helical first stage followed by spur-type gears, ensuring smooth and efficient power transmission. It uses permanent semi-fluid grease lubrication to minimize leakage risks. Hardened steel output shafts with needle bearings support high load capacities.

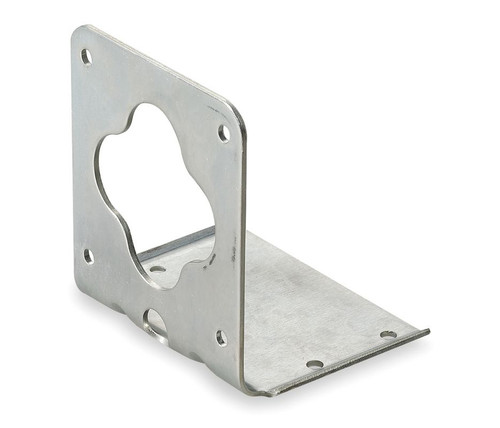

Optional accessories include an "L" mounting bracket (SKU M1760003) and a conduit box (SKU M1760021), facilitating flexible installation. The motor also supports Leeson speed control models 174307 and 174308 for enhanced operational control.

Warranty

1 Year Manufacturer Warranty
