108707.00 Leeson | Parallel Shaft 1/2 hp, 18 RPM 90 Volts DC TEFC Electric Gear Motor

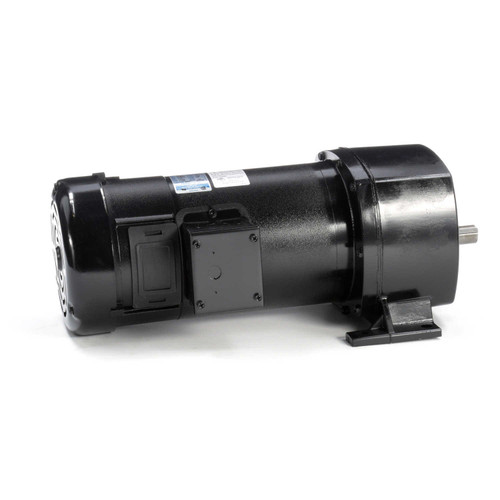

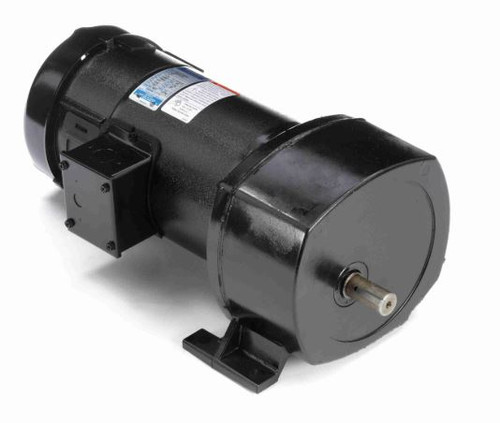

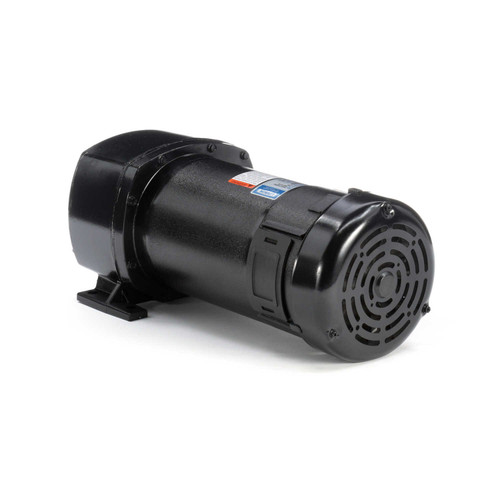

108707.00 Leeson Parallel Shaft 1/2 hp, 18 RPM 90 Volts DC TEFC Electric Gear Motor

This Leeson parallel shaft gear motor delivers 1/2 horsepower at 18 RPM with a 90 Volt DC power supply. Designed for industrial applications requiring precise low-speed torque, it is compatible with Leeson speed controls for enhanced performance.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 18
• Voltage: 90 Volts DC
• Amperage: 5.0 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

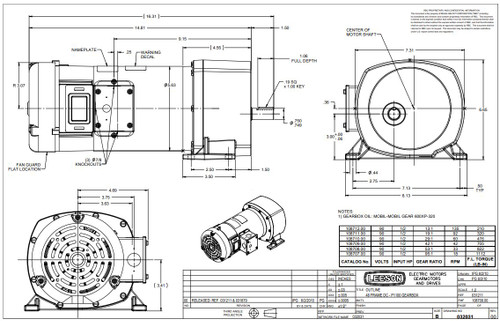

• Shaft Dimensions: 3/4" diameter x 1.5" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features precision-machined in-line steel gears, including a first-stage steel helical gear followed by spur-type gears, ensuring smooth and reliable operation. Permanent semi-fluid grease lubrication minimizes leakage risk, while hardened steel output shafts with needle bearings support high load capacities. This motor is designed for easy integration and can be used with Leeson speed controls (models 174307 and 174308) for variable speed applications.

Warranty

1 Year Manufacturer Warranty
