M1115025.00 Leeson | Parallel Shaft 1/20 hp, 9 RPM 90 Volts DC TENV Electric Gear Motor

M1115025.00 Leeson Parallel Shaft 1/20 hp, 9 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson electric gear motor delivers reliable performance with a 1/20 horsepower rating and 9 RPM speed, designed for applications requiring precise low-speed torque. It serves as a suitable replacement for Baldor GPP233141, Bison 011-336-1208, and Bodine 1072 motors, ensuring compatibility with existing equipment when shaft and mounting specifications are matched.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 9
• Voltage: 90 Volts DC
• Amperage: 0.54 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)

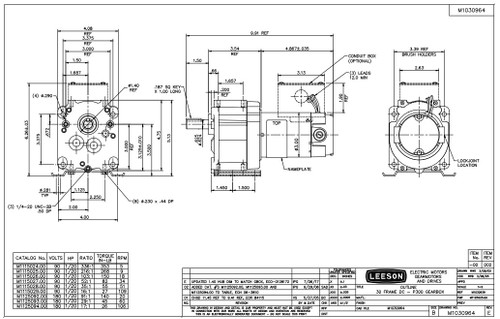

• Shaft Dimensions: 5/8" diameter x 1.5" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features precision-machined in-line steel gears, including a first stage steel helical gear followed by spur-type gears, lubricated with permanent semi-fluid grease to minimize leakage. Hardened steel output shafts incorporate needle bearings for high load capacity. The keyed shaft design facilitates secure coupling, and an optional conduit box (part # M1760021) is available for enhanced installation flexibility. This motor is compatible with Leeson speed controls 174307 and 174308. Always verify shaft and mounting dimensions to ensure proper interchangeability with existing equipment.

Cross Reference

• Baldor GPP233141, Bison 011-336-1208, Bodine 1072 - Please cross check your existing motor specs, shaft and mounting to make sure the replacement Leeson will interchange with your existing equipment

Warranty

1 Year Manufacturer Warranty
