M1135113.00 Leeson | Parallel Shaft 1/4 hp, 500 RPM 90 Volts DC TENV Electric Gear Motor

M1135113.00 Leeson Parallel Shaft 1/4 hp, 500 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson electric gear motor delivers 1/4 horsepower at 500 RPM with a 90 Volt DC power supply. Designed as a suitable replacement for Baldor GPP7450 and Bodine 5040 motors, it is ideal for applications requiring precise speed control and reliable torque output.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 500
• Voltage: 90 Volts DC
• Amperage: 2.0 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)

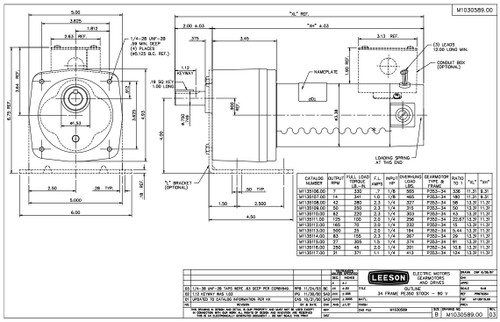

• Shaft Dimensions: 3/4" diameter x 1.625" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings with needle bearings on output shafts

Product Features & Fitment

This motor features precision-machined in-line steel gears, including a first-stage steel helical gear followed by spur-type gears, lubricated with permanent semi-fluid grease to minimize leakage. The hardened steel shafts and needle bearings provide high load capacity and durability. An optional conduit box (part # M1760007) is available for enhanced installation flexibility. Compatible with Leeson speed controls 174307 and 174308. Please verify shaft and mounting compatibility to ensure proper interchange with existing equipment.

Cross Reference

• Baldor GPP7450, Bodine 5040 - Please cross check your existing motor specs, shaft and mounting to make sure the replacement Leeson will interchange with your existing equipment

Warranty

1 Year Manufacturer Warranty
