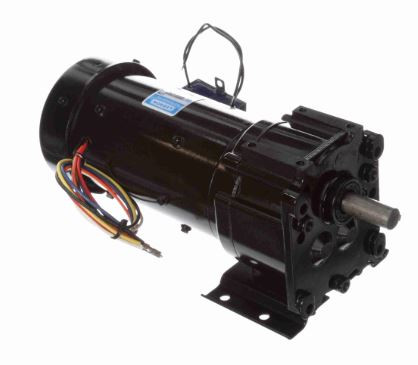

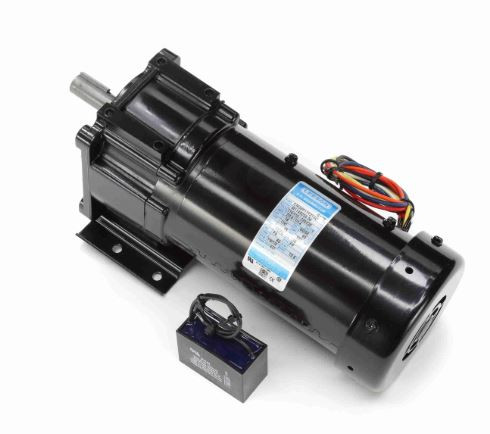

- 1/6 hp, 40 RPM, 2.0/1.0 amps, 115/230 Volts AC
- Gear Ratio = 43
- Torque 219 inch pounds
- Over Hung Pounds = 303
- TEFC = Totally Enclosed Fan Cooled
- Class F Insulation; Service Factor 1.0
- Permanent split capacitor design rated for 115/230VAC 60/50 HZ input
- Rotation = Reversible
- Keyed Shaft, Ball Bearings
One Year Manufacture Warranty. Features: This worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation. Precision machined aluminum housings are used. Gearbox has ball bearings. The housing is sealed and lubrication is permanent with an oil bath. The output shaft is field interchangeable from left hand style to right hand style by reassembly. Optional conduit box # M1760012 available.
CM38P17FZ11C, M1145032.00
Suitable replacement for Baldor GCP25052, Bison 016-226-6036, Bodine 1023 - Please double check the specs to make sure it will work for your application
Some of the differences are but not limited to the following, please cross check your existing motor specs, shaft and mounting to make sure the replacement Leeson will interchange with your existing equipment
Baldor - Leeson is fan cooled
