M1135045.00 Leeson | Right Angle 1/4 hp, 250 RPM 90 Volts DC TENV Electric Gear Motor

M1135045.00 Leeson Right Angle 1/4 hp, 250 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson right-angle electric gear motor delivers 1/4 horsepower at 250 RPM with a 90 Volt DC power supply. Designed for industrial applications requiring reliable, reversible torque, it features a worm-type gearing system for quiet operation and long service life.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 250
• Voltage: 90 Volts DC
• Amperage: 2.30 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)

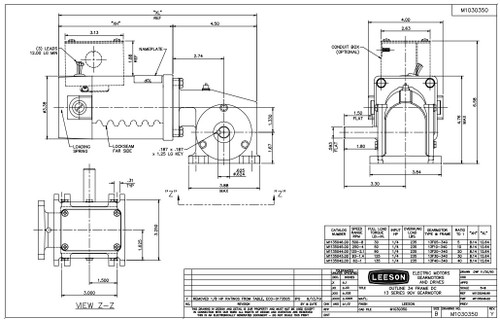

• Shaft Dimensions: 5/8" diameter x 1.8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor incorporates a hardened steel worm and bronze worm wheel housed in precision-machined aluminum for durability and quiet operation. The sealed housing contains a permanent oil bath lubrication system. The output shaft is field interchangeable between left-hand and right-hand configurations by reassembly. Optional accessories include a mounting base (M1760006) and conduit box (M1760007). Compatible with Leeson speed controls models 174307 and 174308.

Warranty

1 Year Manufacturer Warranty
