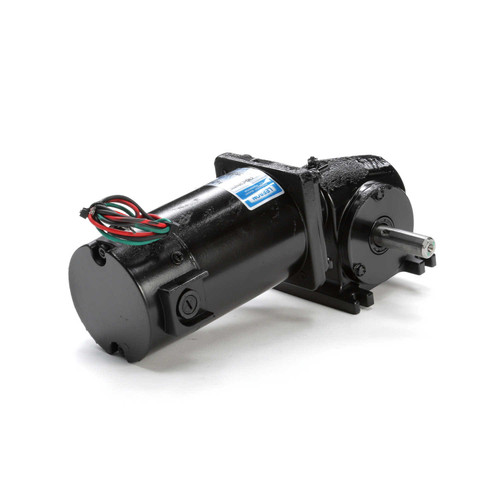

M1135041.00 Leeson | Right Angle 1/8 hp, 500 RPM 90 Volts DC TENV Electric Gear Motor

M1135041.00 Leeson Right Angle 1/8 hp, 500 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson right-angle gear motor delivers reliable 1/8 horsepower performance at 500 RPM with a 90 Volt DC power supply. Designed for industrial applications requiring compact, durable, and reversible motor solutions with precise speed control.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 500
• Voltage: 90 Volts DC
• Amperage: 1.40 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 5/8" diameter x 1.8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This worm-type right-angle gear motor features a hardened steel worm and bronze worm wheel for extended life and quiet operation. The precision-machined aluminum housing is sealed with permanent oil bath lubrication, ensuring maintenance-free performance. The output shaft is field interchangeable between left-hand and right-hand configurations by reassembly.

Optional accessories include a mounting base (part # M1760006) and a conduit box (part # M1760007). This motor is compatible with Leeson speed controls models 174307 and 174308 for enhanced operational flexibility.

Warranty

1 Year Manufacturer Warranty
