M1135038.00 Leeson | Right Angle 1/8 hp, 62 RPM 90 Volts DC TENV Electric Gear Motor

M1135038.00 Leeson Right Angle 1/8 hp, 62 RPM 90 Volts DC TENV Electric Gear Motor

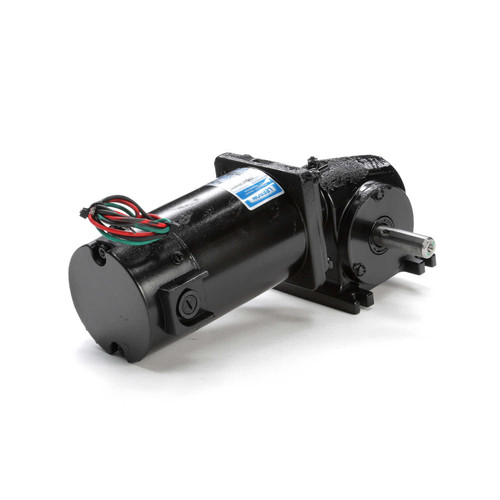

This Leeson right-angle gear motor delivers 1/8 horsepower at 62 RPM with a 90 Volts DC power supply. Designed as a suitable replacement for Baldor GP7402 and Bodine 6144 motors, it is ideal for applications requiring reliable, low-speed torque in a compact, totally enclosed non-ventilated (TENV) package.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 62
• Voltage: 90 Volts DC
• Amperage: 1.40 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)

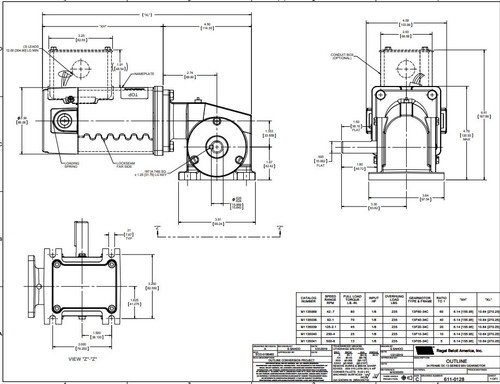

• Shaft Dimensions: 5/8" diameter x 1.8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This worm-type right-angle gear motor features a hardened steel worm and bronze worm wheel for long life and quiet operation. The precision-machined aluminum housing is sealed with permanent oil bath lubrication and includes ball bearings for smooth performance. The output shaft is field interchangeable between left-hand and right-hand styles by reassembly.

Optional accessories include a mounting base (part # M1760006) and a conduit box (part # M1760007). It is compatible with Leeson speed controls 174307 and 174308. Note that while this motor is a suitable replacement for Baldor GP7402, the base mounting holes are not a drop-in match, and the Leeson motor has a single shaft with a shaft height of 1.67 inches. Please verify shaft and mounting compatibility before installation.

Cross Reference

• Baldor GP7402, Bodine 6144 - Please double check the specs to make sure it will work for your application

Warranty

1 Year Manufacturer Warranty
