NP7/52C TECO Westinghouse 7 1/2 hp 3600 RPM 213TC Frame 230/460V TEFC 3-Phase Motor

SKU:
NP7/52C
Weight:
141.00 LBS
Shipping:
Calculated at Checkout
$753.50
Adding to cart… The item has been added

TECO WESTINGHOUSE MAX-PE, NEMA PREMIUM ELECTRIC MOTOR
SEVERE DUTY RATED

  • 7 1/2 hp 3600 RPM, 17.3/8.67 amps 230/460 Volts 60hz. Three Phase

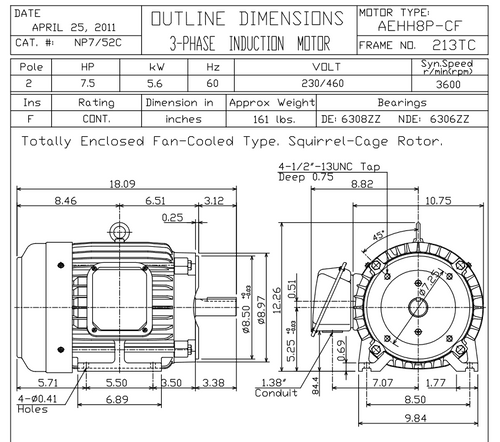

  • NEMA 213TC Frame, Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Cast Iron Construction, Enclosure: Totally Enclosed Fan Cooled (IP54)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
