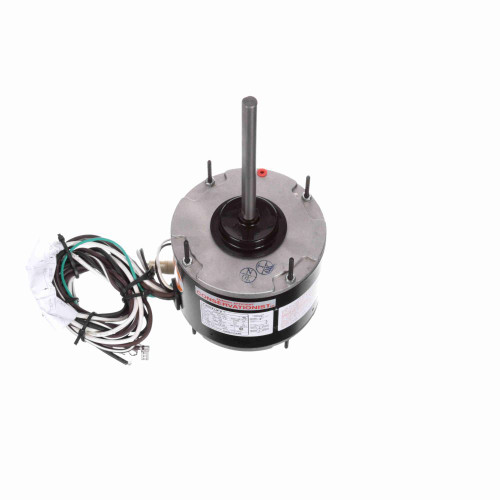

ORM5458BF Century 4-in-1 Multi-Horsepower Condenser Fan Motor 1/3 HP 1075 RPM, 70°C, 208-230V

ORM5458BF Century 4-in-1 Multi-Horsepower Condenser Fan Motor

The ORM5458BF is a versatile 4-in-1 multi-horsepower condenser fan motor designed for HVAC applications. It serves as a direct replacement for various Rheem-Rudd, Dayton, Fasco, and Century motor models, providing reliable performance in residential and commercial condenser units.

Key Specifications

• Horsepower: 1/3 HP
• RPM: 1075
• Voltage: 208-230V
• Amperage: 2.0 amps
• Frame / Diameter: 5 5/8"
• Shaft Dimensions: 1/2" x 6 5/8"
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a 70°C ambient temperature rating and Class F insulation for enhanced durability. It includes 48" leads and a motor case length of 4.11" with 8 mounting holes in the shell for flexible installation. The motor requires a 2-prong 7.5 MFD capacitor (part #7.5DV) for operation.

Cross Reference

• Rheem-Rudd K55HXTDD-8385, F48T12A01, 5458, 51-20668-11, 51-23055-11, 51-20354-11, 51-23053-11, 51-21853-11, 51-21853-03, 51-21854-01. Dayton 2CDT8. Fasco D837. Century ORM5458, ORM5458F. 4 in 1 Multifit motor, Replaces 1/6-1/5-1/4-1/3 HP

Warranty

• Brochure
