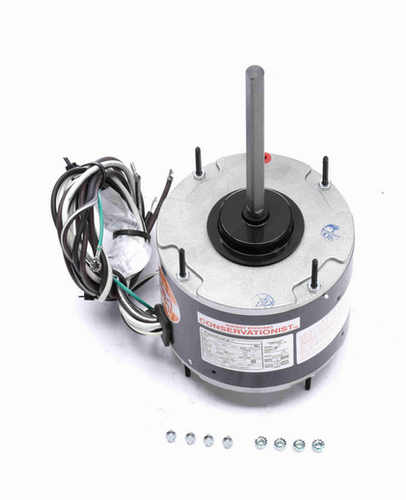

ORM5484BF Century 1/8-1/15 hp 208-230V 825 RPM TEAO 48 Frame Condenser Fan Motor

• 1/8 - 1/5 hp 825 RPM, 1.0 amps, 208-230 Volts 60 Hz, Permanent Split Capacitor (PSC)
• NEMA 48 Frame Keyed Shaft 1/2" Diameter x 6"
• Service Factor = 1.0, Thermal Protection = Automatic
• No Base, Reversible, Ball Bearings, Class F insulation
• 1 Year Manufacture Warranty

Shaft Down Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. TEAO = Totally-Enclosed-Air-Over so motor must be in air-stream. ORM5484BF
