Fasco D0346 Motor | Penn Vent Electric Motor (7190-2904, JE2K007N) Zephyr Z10S/H, 2-Speed, 115 Volt # 56346-0

Fasco D0346 Motor | Penn Vent Electric Motor (7190-2904, JE2K007N) Zephyr Z10S/H, 2-Speed, 115 Volt # 56346-0

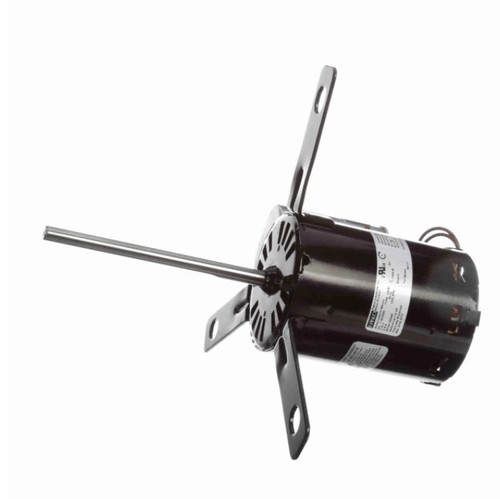

This Fasco D0346 motor is a direct replacement for the Penn Vent model 56346-0 and compatible with several equivalent models. Designed for HVAC applications, it provides reliable two-speed operation for Zephyr Z10S/H and similar ventilation systems.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1550 / 1050
• Voltage: 115 V
• Amperage: 2.9 A
• Frame / Diameter: 3.3"
• Shaft Dimensions: 3/8" diameter x 5.5" length
• Rotation: Clockwise (CW) shaft end

Product Features & Fitment

The motor includes a capacitor and features a 7.5" bolt circle for mounting. It is manufactured by Fasco as a direct replacement for Penn Barry and Penn Vent motors, and is also compatible with models from Fasco, Century/AO Smith, Zephyr, and Dayton. This motor fits applications requiring a two-speed, 115-volt electric motor with the specified shaft and mounting dimensions.

Cross Reference

• Penn Vent 56346-0
• Fasco 7190-2904, 71902904, 71903480, 7190-3480
• Century/AO Smith JE2K007N, JE2K007
• Zephyr Z10S/H
• Fits Dayton 2D071
• ~

Warranty

• Specification Sheet
