sale
Marathon

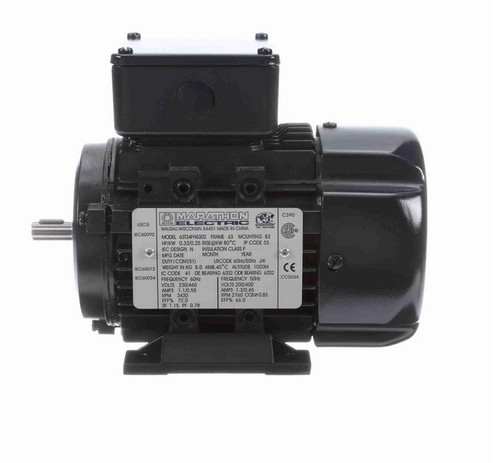

R303 Marathon | 1/3 hp 0.25 kW 230/460V 3600 RPM 3-Phase 63 Frame TEFC (rigid base) Motor
(No reviews)
Write a Review
Write a Review
Marathon
R303 Marathon | 1/3 hp 0.25 kW 230/460V 3600 RPM 3-Phase 63 Frame TEFC (rigid base) Motor
$517.50
$459.94
SKU
R303
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
230/460V
Horsepower
1/3 HP
RPM
3600
Phase
Three Phase
Frame
63
Enclosure
TEFC
Hertz
60 Hz
Amperage
1.1/0.55 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 1/3 hp 0.25 kW, 3600 RPM, 1.1/0.55 amps 230/460 Volts 60hz. Three Phase
- Metric 63 Cast Aluminum frame, Keyed Shaft 11 mm Diameter x 23 mm
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation, B3 Mounting
- 1 Year Manufacture Warranty
This is a metric general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled
Model 063T34FH5302
Replaces Leeson C63T34FZ2C, 192020.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 1/3 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 63 |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 1.1/0.55 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
