S115 Marathon 3/4 hp (1 speed) 115/230V 1800 RPM ODP 56 Frame Cap Start Resilient Base Motor
(No reviews)
Write a Review
Write a Review
Marathon
S115 Marathon 3/4 hp (1 speed) 115/230V 1800 RPM ODP 56 Frame Cap Start Resilient Base Motor
$442.29
$381.46
SKU
S115
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/230V
Horsepower
3/4 HP
RPM
1800
Frame
56
Enclosure
ODP
Hertz
60 Hz
Amperage
10.4/5.2 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B
- 3/4 hp 1800 RPM, 10.4/5.2 amps, 115/230 Volts 60 Hz, Capacitor Start

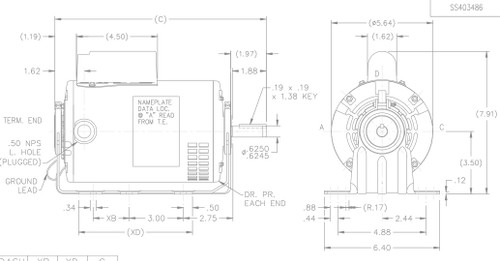

- NEMA 56 Frame Keyed Shaft 1 7/8" x 5/8" Diameter, 1 speed
- Service Factor = 1.0, Thermal Protection = Auto
- Resilient Base, Reversible, Ball Bearings, Class B insulation
- 1 Year Manufacture Warranty
Blower motors are used to blow air inside of buildings. Shaft may be vertical or horizontal. Capacitor Start Motors have higher starting torque than normal. ODP = Open Drip Proof.
Marathon # 056C17D2061
Replaces Century C691
Replaces Dayton 48Y808
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/230V |
| Horsepower | 3/4 HP |
| RPM | 1800 |
| Frame | 56 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 10.4/5.2 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
