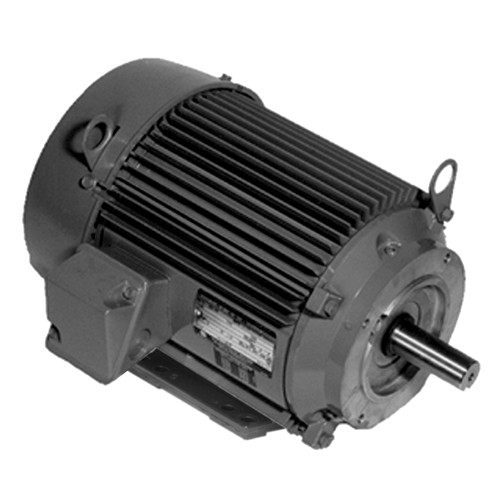

- 3 hp 1800 RPM, 8.4-7.8/3.9 amps 208-230/460 Volts 60 Hz Three Phase Motor
- NEMA 182TC frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose C- Face motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DJ57
