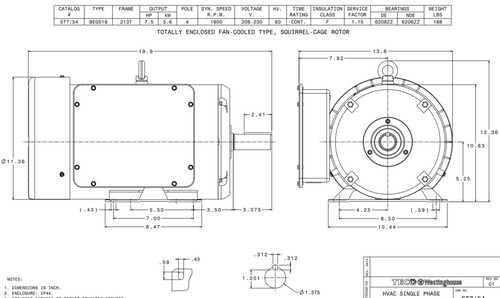

ST7/54 TECO-Westinghouse 7 1/2 HP 1800 RPM 213T 208-230V TEFC Rolled Steel 1-Ph Motor
ST7/54 TECO-Westinghouse 7 1/2 HP 1800 RPM 213T 208-230V TEFC Rolled Steel 1-Ph Motor
ST7/54 TECO-Westinghouse 7 1/2 HP 1800 RPM 213T 208-230V TEFC Rolled Steel 1-Ph Motor
ST7/54 TECO-Westinghouse 7 1/2 HP 1800 RPM 213T 208-230V TEFC Rolled Steel 1-Ph Motor

TECO WESTINGHOUSE

ST7/54 TECO-Westinghouse 7 1/2 HP 1800 RPM 213T 208-230V TEFC Rolled Steel 1-Ph Motor

(No reviews) Write a Review
$1,428.40
SKU ST7/54
Shipping Calculated at Checkout
Voltage 208/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 213T
Enclosure TEFC
Hertz 60 Hz
Amperage 31.1 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 7 1/2 hp 1800 RPM, 1-Speed, 31.1 amps, 208-230 Volts 60 Hz.
  • 213T Frame of Rolled Steel, Shaft: 1 3/8" x 3 3/8" with Slot
  • Rotation = Reversible, Overload Protector: Automatic
  • Service Factor = 1.15, Insulation Class F
  • Ball Bearing, Capacitor Start/Run
  • 1 Year Manufacture Warranty

General purpose motor for HVAC. Totally Enclosed Fan Cooled (TEFC)

Specifications
Voltage 208/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 213T
Enclosure TEFC
Hertz 60 Hz
Amperage 31.1 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
!
