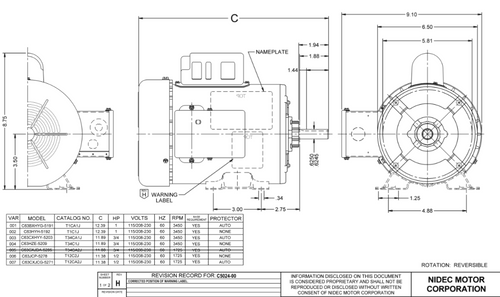

T1CA1J Nidec 1 hp 3600 RPM 115/208-230V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor

T1CA1J Nidec 1 hp 3600 RPM 115/208-230V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor

SKU:
T1CA1J
Weight:
32.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $489.00
Now: $437.00
Adding to cart… The item has been added
  • 1 hp 3600 RPM, 13.6/6.9-6.8 amps 115/208-230V Volts 60 Hz Capacitor Start Motor
  • NEMA 56 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 Overload protection = Auto
  • Rigid Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. C063HYG5191015B

!
