U25P2HS Nidec 25 hp 1800 RPM 284TS Frame 200V TEFC 3-Phase Electric Motor
U25P2HS Nidec 25 hp 1800 RPM 284TS Frame 200V TEFC 3-Phase Electric Motor
U25P2HS Nidec 25 hp 1800 RPM 284TS Frame 200V TEFC 3-Phase Electric Motor
U25P2HS Nidec 25 hp 1800 RPM 284TS Frame 200V TEFC 3-Phase Electric Motor

Nidec

U25P2HS Nidec 25 hp 1800 RPM 284TS Frame 200V TEFC 3-Phase Electric Motor

(No reviews) Write a Review
$2,325.30
$2,076.33
SKU U25P2HS
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 25 HP
RPM 1800
Phase Three Phase
Frame 284TS
Enclosure TEFC
Hertz 60 Hz
Amperage 67 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 25 hp 1800 RPM, 67 amps 200 Volts 60 Hz Three Phase Motor

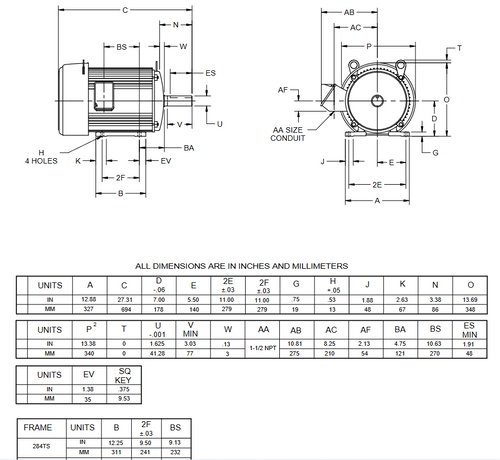

  • NEMA 284TS frame Keyed Shaft 1 5/8" Diameter x 3 1/4"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. CM99

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 25 HP
RPM 1800
Phase Three Phase
Frame 284TS
Enclosure TEFC
Hertz 60 Hz
Amperage 67 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
!
