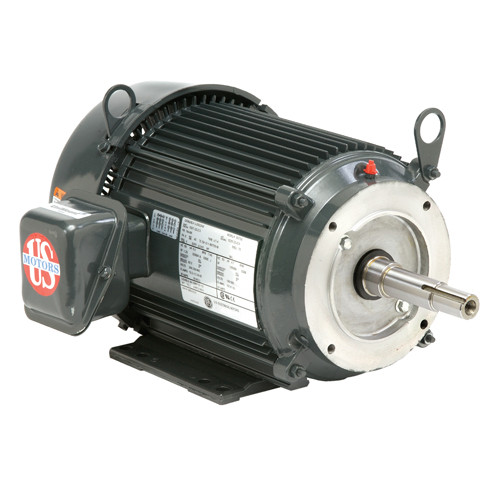

UJ15P2DM US Motors 15 hp 1800 RPM 3-phase 254JM Frame 208-230/460V Close-Coupled Pump Motor

UJ15P2DM US Motors 15 hp 1800 RPM 3-phase 254JM Frame 208-230/460V Close-Coupled Pump Motor

This US Motors close-coupled pump motor delivers 15 horsepower at 1800 RPM, designed for reliable operation in industrial pumping applications. It replaces standard 3-phase motors with a 254JM frame and supports voltages of 208-230/460V.

Key Specifications

• Horsepower: 15 HP
• RPM: 1800
• Voltage: 208-230/460V, 60 Hz
• Amperage: 40.0-37.0/18.4 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

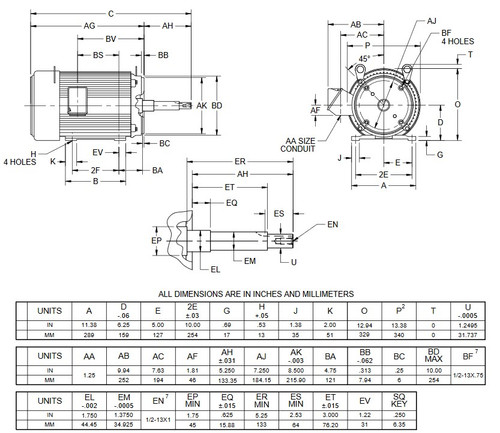

• Frame / Diameter: NEMA 254JM Cast Aluminum Frame
• Shaft Dimensions: JM stainless steel shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a close-coupled design where the pump impeller mounts directly on the shaft, simplifying installation and reducing alignment issues. It includes a removable base for flexible mounting options and is equipped with a 1.25 service factor and auto overload thermal protection for enhanced durability and performance. The motor uses Class F insulation and is designed for reliable operation in demanding environments.

Warranty

1 Year Manufacturer Warranty
