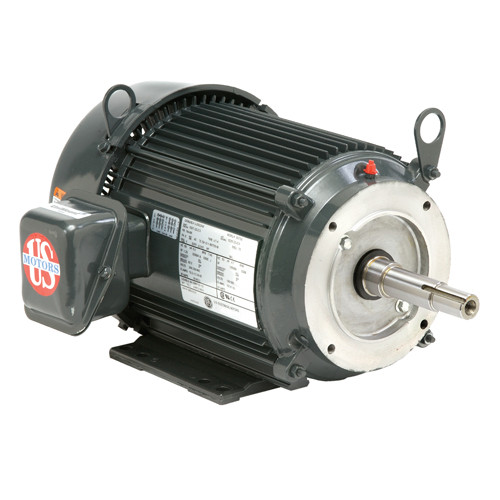

UJ2P1DP US Motors 2 hp 3600 RPM 3-phase 143JP Frame 208-230/460V Close-Coupled Pump Motor
UJ2P1DP US Motors 2 hp 3600 RPM 3-phase 143JP Frame 208-230/460V Close-Coupled Pump Motor
UJ2P1DP US Motors 2 hp 3600 RPM 3-phase 143JP Frame 208-230/460V Close-Coupled Pump Motor
UJ2P1DP US Motors 2 hp 3600 RPM 3-phase 143JP Frame 208-230/460V Close-Coupled Pump Motor

US Motors

UJ2P1DP US Motors 2 hp 3600 RPM 3-phase 143JP Frame 208-230/460V Close-Coupled Pump Motor

(No reviews) Write a Review
$583.05
$520.38
SKU UJ2P1DP
Shipping Free Shipping
Compliance Tab /content/product_tabs/california.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 2 HP
RPM 3600
Phase Three Phase
Frame 143JP
Enclosure TEFC
Hertz 60 Hz
Amperage 4.9/2.5 Amps
Bearings Ball Bearings
Insulation Class Class F
Rotation Reversible
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 2 HP 3600 RPM, 5.4-4.9/2.5 amps, 208-230/460V 60hz. 3 Phase.
  • NEMA 143JP Rolled Steel Frame, JP stainless steel shaft
  • 1.25 Service Factor, Auto Overload Thermal Protection, Class F insulation
  • Reversible Rotation, Totally Enclosed Fan Cooled,
  • Rigid Base, Ball Bearings,

Close Coupled motors have the pump impeller mounted directly on the shaft. 1 Year Manufacture Warranty. TEFC = Totally Enclosed Fan Cooled, Proof, FL31

Specifications
Compliance Tab /content/product_tabs/california.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 2 HP
RPM 3600
Phase Three Phase
Frame 143JP
Enclosure TEFC
Hertz 60 Hz
Amperage 4.9/2.5 Amps
Bearings Ball Bearings
Insulation Class Class F
Rotation Reversible
Mounting Rigid Base
!
