UN32T2BC Nidec 1 1/2 hp 1800 RPM 145TC (Rigid Base) 230/460V TENV Vector-Duty 3-Phase Motor
UN32T2BC Nidec 1 1/2 hp 1800 RPM 145TC (Rigid Base) 230/460V TENV Vector-Duty 3-Phase Motor
UN32T2BC Nidec 1 1/2 hp 1800 RPM 145TC (Rigid Base) 230/460V TENV Vector-Duty 3-Phase Motor
UN32T2BC Nidec 1 1/2 hp 1800 RPM 145TC (Rigid Base) 230/460V TENV Vector-Duty 3-Phase Motor

Nidec

UN32T2BC Nidec 1 1/2 hp 1800 RPM 145TC (Rigid Base) 230/460V TENV Vector-Duty 3-Phase Motor

(No reviews) Write a Review
$677.35
$604.67
SKU UN32T2BC
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Enclosure TENV
Hertz 60 Hz
Amperage 4.7/2.3 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 1/2hp 1800 RPM, 4.7/2.3 amps 230/460 Volts 60 Hz Three Phase Motor

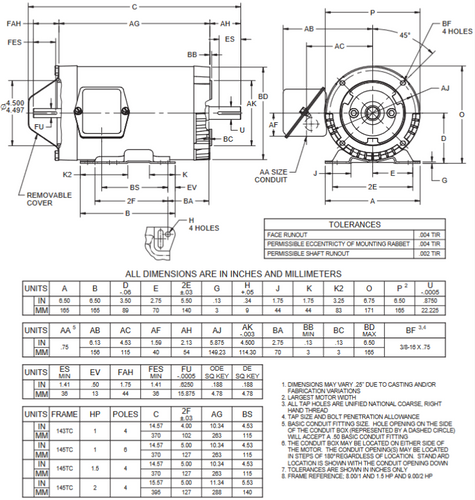

  • NEMA 145TC Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable C-Face motor for material handling, cranes and machine tools. 5000:1 constant torque from 0 to nominal motor rpm. NEMA design A. Encoder and brake provisions. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. FD95

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Enclosure TENV
Hertz 60 Hz
Amperage 4.7/2.3 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
