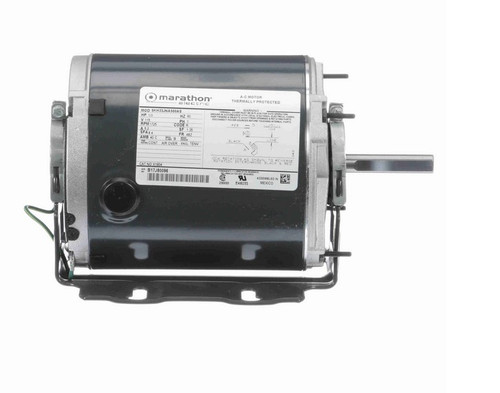

X1904 Marathon 1/3 hp 1800 RPM 115V TENV 48Z Frame Split-Phase Farm Motor

X1904 Marathon 1/3 hp 1800 RPM 115V TENV 48Z Frame Split-Phase Farm Motor

This Marathon 1/3 horsepower motor is a single-phase, split-phase design ideal for general-purpose farm applications. It is built to replace standard farm motors requiring a totally-enclosed non-ventilated (TENV) configuration with reliable performance.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115 V
• Amperage: 6.2 A
• Enclosure: Totally-Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 48Z Frame
• Shaft Dimensions: 1/2" Diameter x 1 1/2" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient base for stable mounting and includes an automatic overload protection system. It is designed for easy installation with reversible rotation to accommodate various equipment configurations. The ball bearing construction ensures durability and smooth operation in demanding farm environments.

Warranty

1 Year Manufacturer Warranty
