X3P1B Nidec 3 hp 3600 RPM 182T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor

X3P1B Nidec 3 hp 3600 RPM 182T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor

SKU:
X3P1B
Weight:
90.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $879.00
Now: $784.80
Adding to cart… The item has been added
  • 3 hp 3600 RPM, 7.8/3.9 amps  230/460 Volts 60 Hz Three Phase Motor

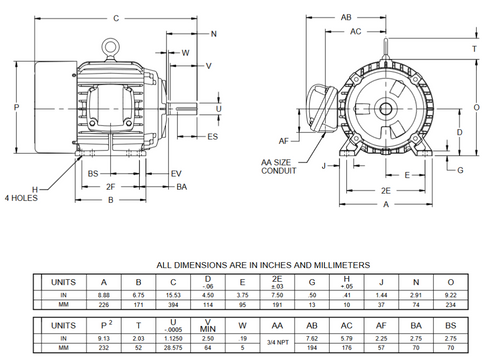

  • NEMA 182T Cast Iron frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose Division 1 hazardous location motor for class 1 group D and class 2 group FG.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. FJ15

!
