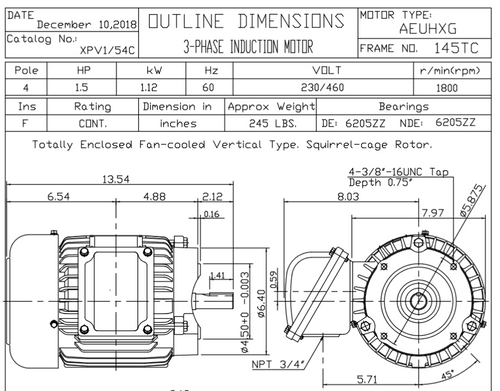

XPV1/54C TECO-Westinghouse 1 1/2 HP 1800 RPM 145TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor

SKU:
XPV1/54C
Weight:
100.00 LBS
Shipping:
Calculated at Checkout
$628.49
Adding to cart… The item has been added

TECO WESTINGHOUSE NEMA PREMIUM ROUND MOTOR

  • 1 1/2 hp 1800 RPM, 1-Speed, 4.30/2.15 amps, 230/460 Volts 60 Hz. Three Phase
  • 145TC Cast Iron Frame, Shaft: 7/8" x 2 1/8" with Key
  • Ball Bearing, Reversible Rotation, Overload Protector: Manual
  • Service Factor = 1.15, Insulation Class F
  • Explosion Proof: Class I Div. 1 Group C and D, Class II Groups E, F, and G.
  • 1 Year Manufacture Warranty

Explosion Proof C-Face Motor For Use Where Ever Explosive Gases or Grain Dust May Be Present. Totally Enclosed Fan Cooled (TEFC)
