Marathon

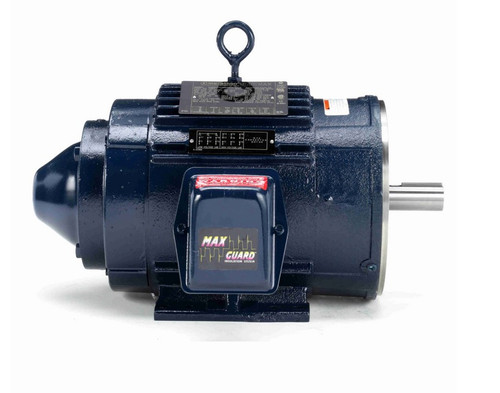

Y564A Marathon 5 hp 1800 RPM 3-Phase 184TC Frame TENV (rigid base) 230/460V Marathon Motor
(No reviews)
Write a Review
Write a Review
Marathon
Y564A Marathon 5 hp 1800 RPM 3-Phase 184TC Frame TENV (rigid base) 230/460V Marathon Motor
$2,151.88
$1,828.50
SKU
MY564A
UPC
7.23E+11
Availability
LIMITED STOCK
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
5 HP
RPM
1800
Phase
Three Phase
Frame
184TC
Enclosure
TENV
Hertz
60 Hz
Amperage
13.4/6.7 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class H
Mounting
Rigid Base
- 5 hp 1800 RPM, 13.4/6.7 amps 230/460 Volts 60 Hz 3-Phase. Encoder Ready
- NEMA 184TC Cast Iron frame, C-face, Keyed Shaft 1 1/8" Diameter x 2 3/4"
- Service Factor: 1.0, Overload protection = Thermostat
- Rigid Base, Reversible, Ball Bearings, Class H Insulation
- 1 Year Manufacture Warranty
Inverter (Vector) duty three phase electric motor with a C-face mount. 1000:1 constant torque. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated.
Model: 184THTCD8028
Replaces Marathon Y564, 184THTS8028
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 5 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 184TC |
| Enclosure | TENV |
| Hertz | 60 Hz |
| Amperage | 13.4/6.7 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class H |
| Mounting | Rigid Base |
