YC3P3B Nidec 3 hp 1200 RPM 213T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor

YC3P3B Nidec 3 hp 1200 RPM 213T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor

SKU:
YC3P3B
Weight:
145.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $1,662.00
Now: $1,483.60
Adding to cart… The item has been added
  • 3 hp 1200 RPM, 8.8/4.4 amps  230/460 Volts 60 Hz Three Phase Motor

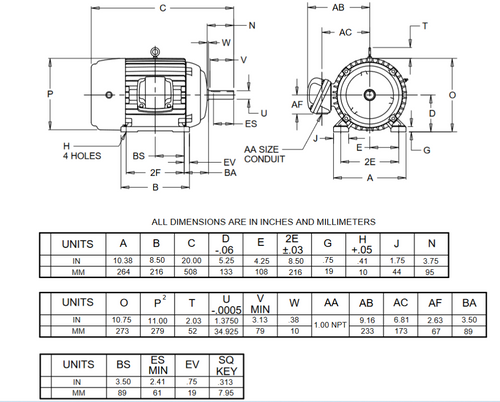

  • NEMA 213T Cast Iron frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose, Corrosion resistant, Division 1 hazardous location motor for class 1 group D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. FG58

!
