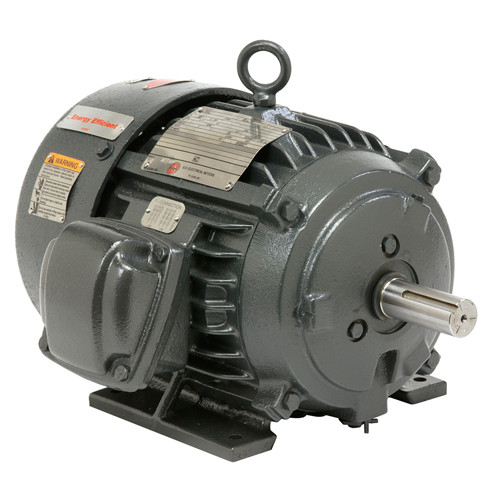

YC40P1BS Nidec 40 hp 3600 RPM 324TS Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor

YC40P1BS Nidec 40 hp 3600 RPM 324TS Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor

SKU:
YC40P1BS
Availability:
Please email for availability
Weight:
550.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $6,539.00
Now: $5,838.80

CURRENTLY OUT OF STOCK

  • 40 hp 3600 RPM, 90.0/45.0 amps 230/460 Volts 60 Hz Three Phase Motor
  • NEMA 324TS Cast Iron frame Keyed Shaft 1 7/8" Diameter x 3 3/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose, Corrosion resistant, Division 1 hazardous location motor for class 1 group D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. FE79

!
