M1120182.00 Leeson | 0.13 hp 1750 RPM 31CS PM 12 VDC Motor TENV Washdown

M1120182.00 Leeson 0.13 hp 1750 RPM 31CS PM 12 VDC Motor TENV Washdown

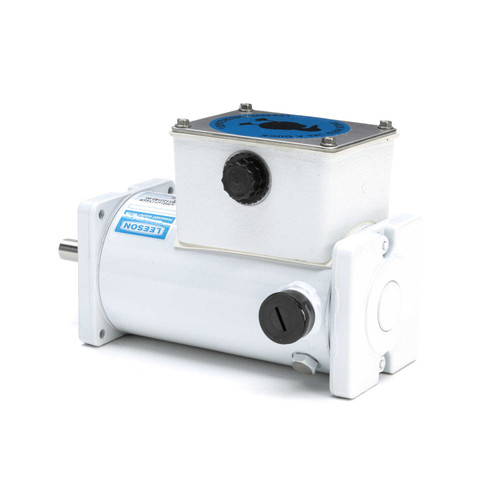

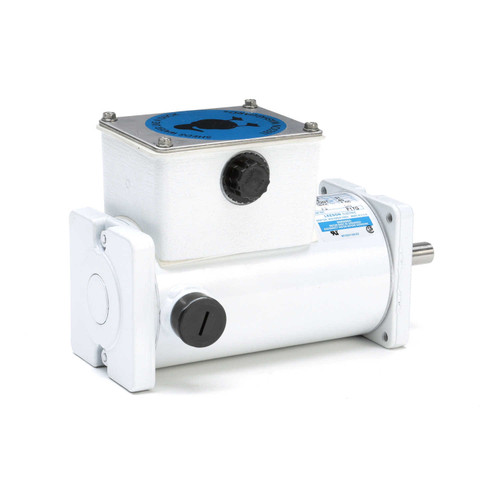

This Leeson motor model M1120182.00 is a 0.13 horsepower, 12 VDC permanent magnet motor designed for washdown environments. It is suitable for applications requiring a totally enclosed, non-ventilated motor with versatile mounting options.

Key Specifications

• Horsepower: 0.13 hp
• RPM: 1750
• Voltage: 12 VDC
• Amperage: 10.5 amps
• Enclosure: Totally Enclosed Non-Ventilated (TENV, IP55)
• Frame / Diameter: 31CS
• Rotation: Reversible

Product Features & Fitment

This motor features a face mount design allowing installation in all positions. It includes a conduit box for electrical connections and utilizes Class F insulation with a service factor of 1.0. The motor is compatible with Leeson speed control model 175290 for adjustable speed applications.

Warranty

1 Year Manufacturer Warranty
