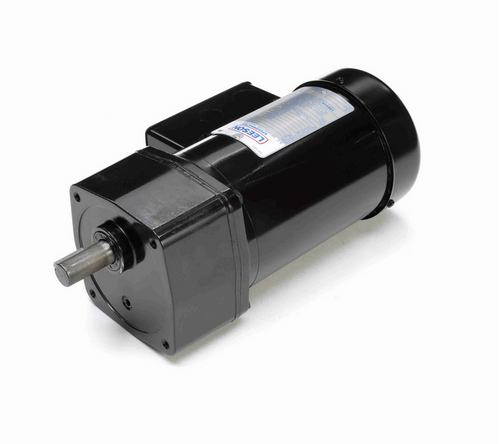

096069.00 Leeson 1/4 hp 173 RPM 208-230/460 VAC 42Y Frame (No Base) TEFC 3-Phase AC Controllable Gearmotor

096069.00 Leeson 1/4 hp 173 RPM 208-230/460 VAC 42Y Frame (No Base) TEFC 3-Phase AC Controllable Gearmotor

SKU:
96069
Weight:
26.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $1,276.00
Now: $650.76
Adding to cart… The item has been added
  • 1/4 hp 173 RPM, 1.2/0.6 amps 208-230/460 Volt AC 60 Hz Controllable Three Phase Motor
  • NEMA 42Y Frame, Shaft 3/4" Diameter x 1 5/8"
  • Service Factor: 1.0 Overload Protection = None
  • No Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Parallel Shaft Geared Three Phase AC motor designed for use inverter controllers. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan Cooled. 096069.00

!
