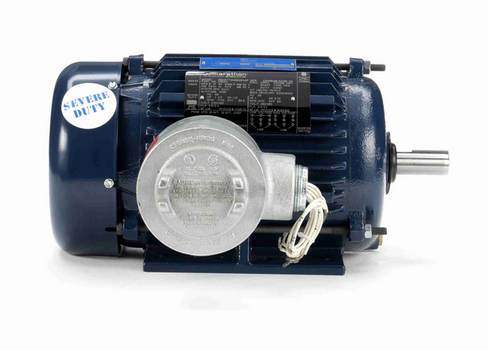

U002A Marathon 1 1/2 hp 1800 RPM 3-Phase 145T Frame TEFC (rigid base) 230/460V Marathon Motor

U002A Marathon 1 1/2 hp 1800 RPM 3-Phase 145T Frame TEFC (rigid base) 230/460V Marathon Motor

SKU:
U002A
Weight:
76.00 LBS
Width:
10.00 (in)
Height:
15.00 (in)
Depth:
16.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
230/460V
Horsepower:
1/2 HP
RPM:
1800
Phase:
Three Phase
Frame:
145T Frame
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
4.6/2.3 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $1,073.99
Now: $933.23
Adding to cart… The item has been added
  • 1 1/2 hp 1800 RPM, 4.6/2.3 amps 230/460 Volts 60 Hz. 3-Phase
  • NEMA 145T cast iron frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload protection = Thermostat
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Explosion-Proof three phase cast iron electric motor. EXP PROOF CL I GR D CL II GR F&G T3B. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.  145TTGN6526

!
