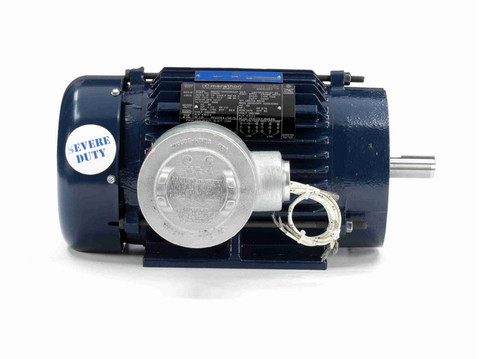

1 1/2 hp 1800 RPM 3-Phase 145TC Frame TEFC (rigid base) 230/460V Marathon Motor # C362A

SKU:
C362A
Weight:
80.00 LBS
Shipping:
Calculated at Checkout
$513.57
  • 1 1/2 hp 1800 RPM, 4.6/2.3 amps 230/460 Volts 50-60hz. 3-Phase
  • NEMA 145TC frame, C-face, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload protection = Thermostat
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Explosion proof motor having a C-face mount and requiring three phase power. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 145TTGN6536
