H607 Century 1-1/2 hp 3600/2850 RPM 3-Phase 56J Frame ODP (no base) 208-230/460V Century Pump Motor # H607

H607 Century 1-1/2 hp 3600/2850 RPM 3-Phase 56J Frame ODP Pump Motor

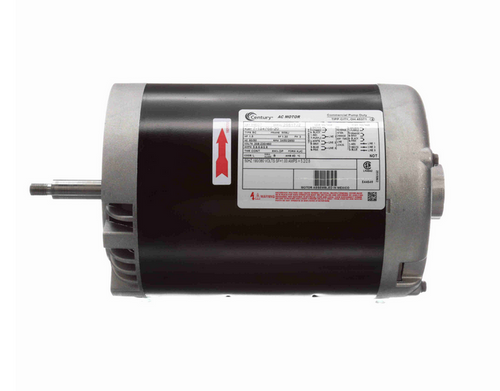

This Century H607 motor is a general-purpose pump motor designed for three-phase power applications. It replaces compatible 1-1/2 hp motors and is ideal for use with pumps or gear heads requiring a C-face mount.

Key Specifications

• Horsepower: 1-1/2 hp
• RPM: 3600/2850
• Voltage: 208-230/460 V
• Amperage: 5.8-5.6/2.8 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56J frame
• Shaft Dimensions: Threaded stainless steel shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

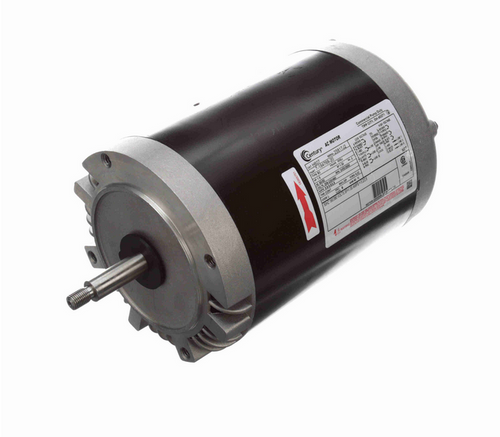

The motor features a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft for secure pump or gear head attachment. It includes a threaded stainless steel shaft for reliable coupling. The motor is supplied without a base and includes a wiring diagram on the nameplate for easy installation.

Warranty

1 Year Manufacturer Warranty
