H733 Century 2 hp 3600/2850 RPM 3-Phase 56J Frame ODP (no base) 208-230/460V Century Pump Motor # H733

H733 Century 2 hp 3600/2850 RPM 3-Phase 56J Frame ODP (no base) 208-230/460V Century Pump Motor # H733

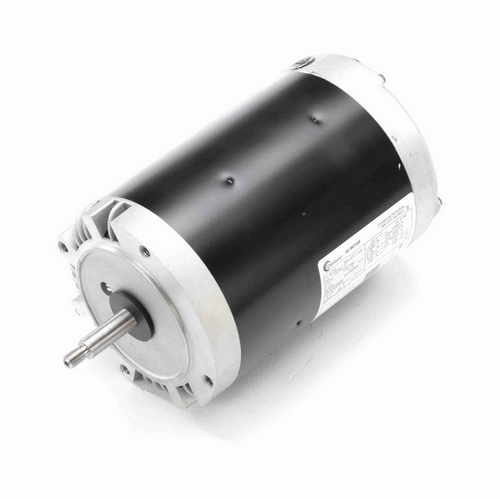

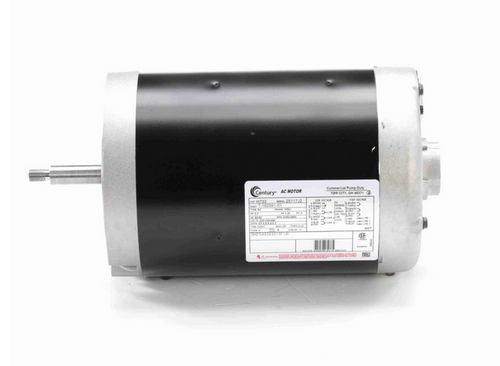

This Century 2 hp pump motor is designed for general-purpose pump applications requiring three-phase power. It features a NEMA 56J frame with a C-face mount and replaces Marathon models K225 and 5K49NN2178.

Key Specifications

• Horsepower: 2 hp
• RPM: 3600/2850
• Voltage: 208-230/460 V
• Amperage: 6.8-6.6/3.3 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56J
• Shaft Dimensions: Threaded stainless steel, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

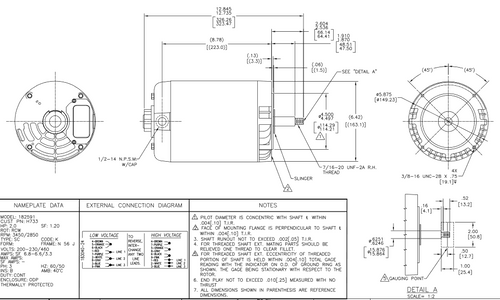

The motor includes a threaded stainless steel shaft and a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. It comes without a base and features Class B insulation with an automatic overload protection system. Wiring details are provided on the motor nameplate for straightforward installation.

Cross Reference

• Marathon K225, 5K49NN2178

Warranty

1 Year Manufacturer Warranty
