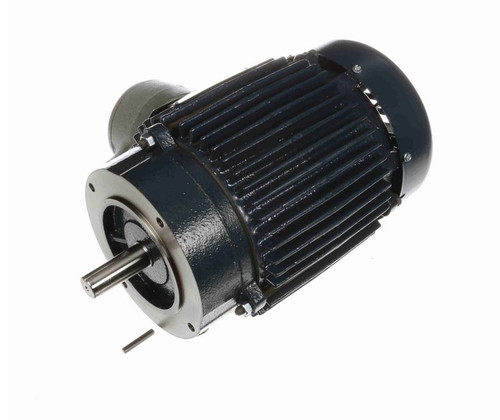

C301B Marathon 1 1/2 hp 3600 RPM 3-Phase 143TC Frame TEFC (no base) 230/460V Marathon Motor

SKU:
C301B
Weight:
70.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $904.80
Now: $786.30
Adding to cart… The item has been added
  • 1 1/2 hp 3600 RPM, 4.0/2.0 amps 230/460 Volts 60 Hz. 3-Phase
  • NEMA 143TC Cast Iron frame, C-face, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload protection = Thermostat
  • No Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Explosion-Proof three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 143TTGN14011
