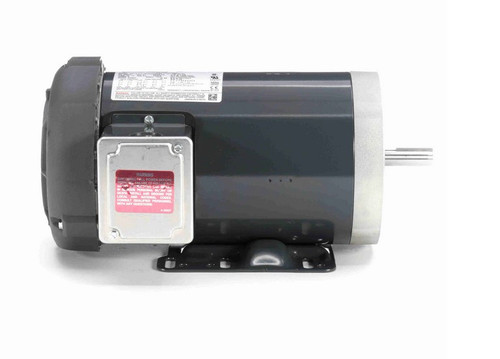

D395A Marathon 2 hp 3600 RPM 3-Phase 56C Frame TEFC (base) 230/460V Marathon Motor

• 2 hp 3600 RPM, 5.0/2.5 amps 230/460 Volts 50-60hz 3-Phase

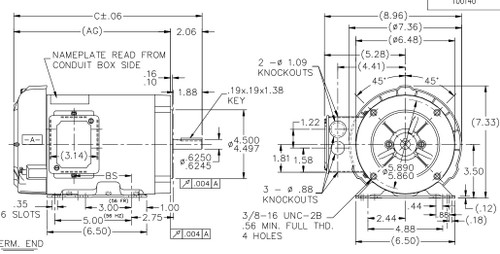

• NEMA 56HC frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15, Overload protection = None
• Removable Rigid Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.

Marathon Model # 056T34F99012
Replaces Leeson C6T34FK132A, 119417.00, 113927.00
