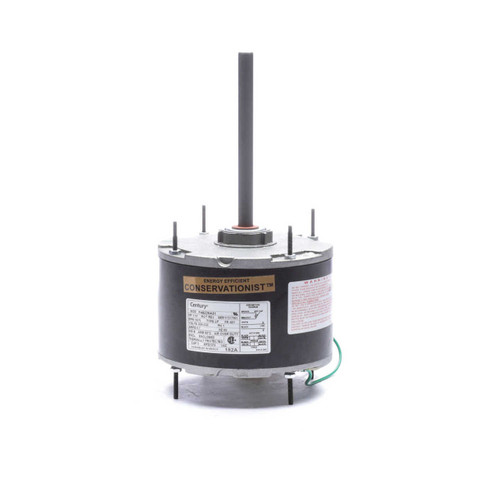

Model 182A Century 1/10 hp 1075 RPM, 1-Speed, 208-230V, 60°C Condensor Motor

Model 182A Century 1/10 hp 1075 RPM, 1-Speed, 208-230V, 60°C Condenser Motor

This Model 182A Century condenser motor is a permanent split capacitor (PSC) motor designed for condenser, heat pump, and refrigeration applications. It serves as a reliable replacement motor with a 1/10 horsepower rating and a 1075 RPM speed.

Key Specifications

• Horsepower: 1/10 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 0.7 amps
• Enclosure: Totally Enclosed Air Over (TEAO)
• Shaft Dimensions: 1/2" x 6"
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a 1-speed design with Class B insulation and includes a reversing plug for flexible rotation. It requires a 5 MFD capacitor (part #5DV) for operation and comes with 26" leads and 4 wires—2 for power and 2 for the 2-prong capacitor connection. The motor is all-angle mount capable with extended thru bolts and automatic overload protection, suitable for ambient temperatures up to 60°C.

Warranty

1 Year Manufacturer Warranty
