1470P Nidec | 1/10 hp 1550 RPM 1-Speed 115/208-230V; 5.0" Blower Motor

1470P Nidec | 1/10 hp 1550 RPM 1-Speed 115/208-230V; 5.0" Blower Motor

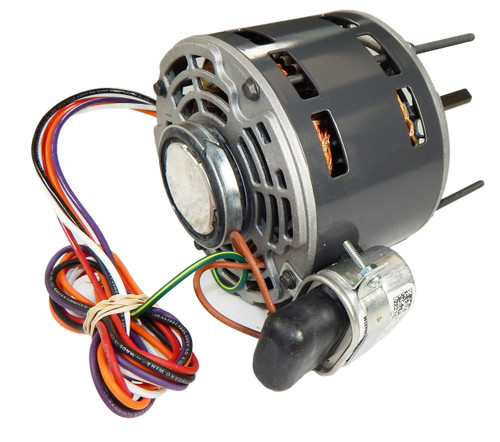

The 1470P Nidec blower motor is a reliable 1/10 horsepower, single-speed motor designed for HVAC applications. It serves as a suggested aftermarket replacement for GE models HG3201, HG3202, HG3203, HG3204, HG3221, HG3222, HG3223, and HG3224.

Key Specifications

• Horsepower: 1/10 hp
• RPM: 1550
• Voltage: 115/208-230V
• Amperage: 1.7/0.9 amps
• Enclosure: Open Drip Proof Air Over
• Frame / Diameter: 21/29 frame, 5.0" diameter
• Shaft Dimensions: 3/8" diameter x 3.5" length
• Rotation: CCW shaft end
• Bearings: Sleeve bearings

Product Features & Fitment

This permanent split capacitor motor includes a capacitor and features automatic overload protection for continuous duty operation. It comes with a hub mount bracket featuring a 2.25" ring diameter for secure installation. The motor case length measures 3.56", and it is rated for Class B insulation with a 40°C ambient temperature rating. The motor is equipped with 30" leads for easy electrical connections.

Cross Reference

• GE HG3201, HG3202, HG3203, HG3204, HG3221, HG3222, HG3223, HG3224

Warranty

1 Year Manufacturer Warranty
