Fasco D129 Motor | 1/125 hp 1500 RPM 2-Speed 3.3" Diameter 115V

Fasco D129 Motor | 1/125 hp 1500 RPM 2-Speed 3.3" Diameter 115V

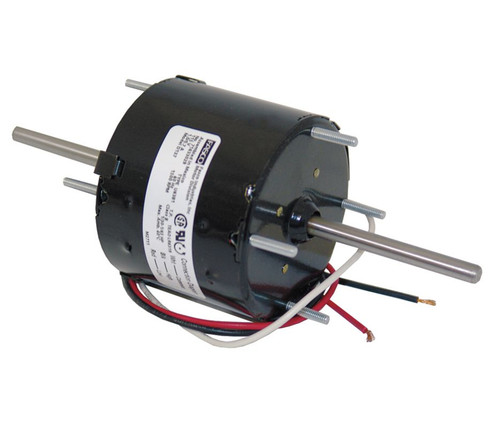

The Fasco D129 is a compact, two-speed shaded pole motor designed for HVAC and industrial applications requiring reliable, low-horsepower operation. It serves as a direct replacement motor with versatile mounting options and dual shaft ends for flexible installation.

Key Specifications

• Horsepower: 1/125 hp
• RPM: 1500
• Voltage: 115V
• Amperage: 0.4 Amps
• Enclosure: Open Ventilation, Air Over
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 3 1/4" x 1/4" x 3 1/4" Double Shaft
• Rotation: CCWLE (Counterclockwise from Lead End)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle and four mounting studs on each end, facilitating secure and stable installation. The motor length excluding shafts measures 2 1/8". A shaft bushing kit (1/4" to 5/16", part # KIT240) is available separately to accommodate different shaft sizes.

Warranty

1 Year Manufacturer Warranty
