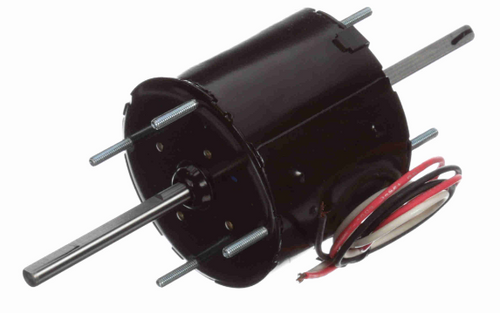

Fasco D137 Motor | 1/30 hp 1500 RPM 2-Speed 3.3" Diameter 115V (Sears whirlpool)

Fasco D137 Motor | 1/30 hp 1500 RPM 2-Speed 3.3" Diameter 115V (Sears Whirlpool)

The Fasco D137 is a versatile 2-speed motor designed for range hood applications. It serves as a direct replacement for models including Sears Whirlpool and Dayton 38N573, ensuring reliable performance in ventilation systems.

Key Specifications

• Horsepower: 1/30 hp
• RPM: 1500
• Voltage: 115V, 60 Hz
• Amperage: 1.0 amps
• Frame / Diameter: 3.3" diameter
• Shaft Dimensions: 2" length x 5/16" diameter x 2" double shaft
• Rotation: Counterclockwise (CCWLE)
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a double shaft design with a 2-inch length on each side, facilitating flexible installation options. It mounts securely using four studs located at each end. The compact motor length, excluding shafts, measures 2 7/8 inches, making it suitable for tight spaces in range hood assemblies.

Warranty

1 Year Manufacturer Warranty
