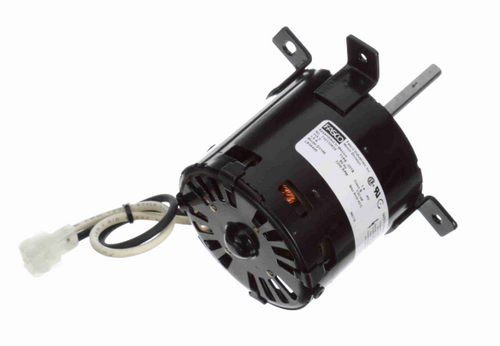

Fasco D1198 Motor | 1/30 hp 3200 RPM CCW 3.3" Diameter 115V (Lennox 25J1201) Fasco

Fasco D1198 Motor | 1/30 hp 3200 RPM CCW 3.3" Diameter 115V (Lennox 25J1201)

The Fasco D1198 is a reliable 1/30 horsepower motor designed for HVAC and industrial applications. It serves as a direct replacement for models including Lennox 25J1201, Lear Siegler 7121-8774, 7121-0829, Rotom FM-RFM1198, and Dayton 48GN81.

Key Specifications

• Horsepower: 1/30 hp
• RPM: 3200
• Voltage: 115 V, 60 Hz
• Amperage: 1.5 A
• Frame / Diameter: 3.3"
• Shaft Dimensions: 5/16" diameter x 2 1/3" length
• Rotation: Counterclockwise (CCWSE)
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a lug mount design for secure installation and a compact motor length of 3 1/8" excluding the shaft. Its sleeve bearings ensure smooth operation and durability in various HVAC setups. The CCW shaft rotation matches the requirements of many standard blower and fan applications.

Cross Reference

• Lear Siegler 7121-8774, 7121-0829, Lennox 25J1201, Rotom FM-RFM1198, Dayton 48GN81

Warranty

1 Year Manufacturer Warranty
