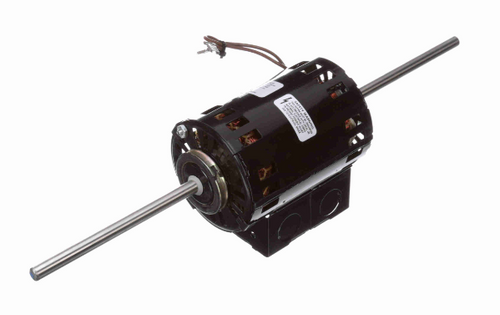

Fasco D1141 Motor | 1/15 hp 1000 RPM 3-Speed 3.3" Diameter 115 Volts (McQuay)

Fasco D1141 Motor | 1/15 hp 1000 RPM 3-Speed 3.3" Diameter 115 Volts (McQuay)

The Fasco D1141 is a versatile 1/15 horsepower, 3-speed motor designed for HVAC and industrial applications. It serves as a reliable aftermarket replacement for McQuay model 879-382563B-00 and Dayton models 48GN50 and 7190-2353.

Key Specifications

• Horsepower: 1/15 hp
• RPM: 1000
• Voltage: 115 Volts, 60 Hz
• Amperage: 1.7/0.9 Amps
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 5 5/8" x 3/8" x 5 5/8" Double Shaft
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a base mount design and requires a 4 MFD 370V capacitor (Fasco Part #4DV) for proper operation. The motor length excluding shafts measures 4 3/4", facilitating straightforward installation in compatible equipment.

Cross Reference

• McQuay 879-382563B-00. Dayton 48GN50, 7190-2353

Warranty

1 Year Manufacturer Warranty
