1342 Nidec | 1/15 hp 1050 RPM 1-Speed 115V; 5.0" Blower Motor
This Nidec blower motor is designed for HVAC applications requiring reliable, continuous-duty operation. It serves as a direct replacement for motors with similar specifications, delivering efficient performance in ventilation and air handling systems.
Key Specifications
- Horsepower: 1/15 hp
- RPM: 1050
- Voltage: 115V
- Amperage: 2.6 amps
- Enclosure: Open Air Over Enclosure
- Frame / Diameter: 5.0" Diameter
- Shaft Dimensions: 1/2" x 2.0"
- Rotation: CW shaft end
- Bearings: Sleeve bearings
Product Features & Fitment

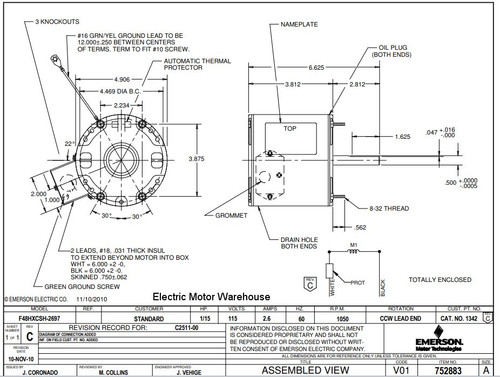

This shaded pole motor features automatic overload protection and Class B insulation, suitable for ambient temperatures up to 40°C. It includes 20" leads and a stud mount for straightforward installation in compatible blower assemblies. The motor case length measures 3.812", ensuring proper fit within designated housings.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
