Fasco D329 Motor | 1/15 hp 1550 RPM 4.4" Diameter 115 Volts

Fasco D329 Motor | 1/15 hp 1550 RPM 4.4" Diameter 115 Volts

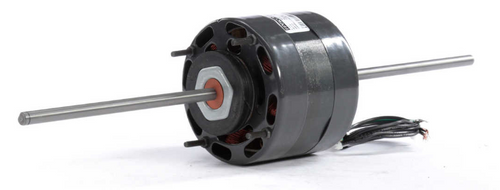

The Fasco D329 is a reliable shaded pole motor designed for use in fan coil air conditioning units and unit heater fans. It serves as a direct replacement motor, delivering consistent performance in HVAC applications requiring open ventilation and air-over cooling.

Key Specifications

• Horsepower: 1/15 hp
• RPM: 1550
• Voltage: 115 Volts
• Amperage: 2.5 amps
• Frame / Diameter: 4.4" diameter
• Shaft Dimensions: Double shaft, 7 1/2" length x 3/8" diameter x 7 1/2" length
• Enclosure: Open ventilation, air over
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a belly band or stud mount with a bolt circle diameter of 3.89", allowing flexible installation options. The motor length excluding shafts measures 3 3/8", facilitating compact fitment in tight spaces. Its double shaft design supports versatile fan configurations in HVAC systems.

Warranty

1 Year Manufacturer Warranty
