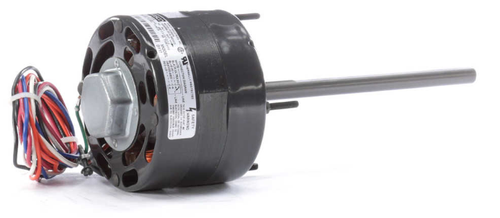

Fasco D117 Motor | 1/15 hp 1550 RPM CCW 4-Speed 4.4" Diameter 115 Volts

Fasco D117 Motor | 1/15 hp 1550 RPM CCW 4-Speed 4.4" Diameter 115 Volts

The Fasco D117 is a 1/15 horsepower shaded pole motor designed for fan coil air conditioning units and unit heater fans. It serves as a reliable replacement motor offering consistent performance in HVAC applications requiring a 4-speed operation.

Key Specifications

• Horsepower: 1/15 hp
• RPM: 1550
• Voltage: 115 Volts
• Amperage: 2.4 amps
• Enclosure: Open Ventilation, Air Over
• Frame / Diameter: 4.4" Diameter
• Shaft Dimensions: 1/2" diameter x 7 1/2" length
• Rotation: Counterclockwise (CCWSE)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor supports 4-speed operation and can be mounted using either a belly band or stud mount with a bolt circle diameter of 3.89". The motor length excluding the shaft measures 3 inches, facilitating compact installation in tight HVAC assemblies. Its shaded pole design ensures quiet and efficient airflow for fan coil and unit heater applications.

Warranty

1 Year Manufacturer Warranty
