Fasco D335 Motor | 1/20 hp 1550 RPM 4-Speed 4.4" Diameter 115 Volts

SKU:: D335
UPC:
Weight:: 5.00 LBS
Width:: 10.00 (in)
Height:: 6.00 (in)
Depth:: 6.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNT & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115V
Horsepower:: 1/20 HP
RPM:: 1550
Hertz:: 60 Hz
Type:: Shaded Pole
Amperage:: 2.1 Amps
Bearings:: Sleeve Bearings
Speeds:: 4-Speed
Mounting:: Stud

Current Stock:

Was: $247.71

Now: $235.64

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

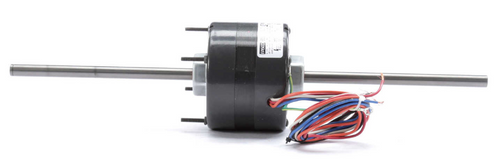

Fasco D335 Motor | 1/20 hp 1550 RPM 4-Speed 4.4" Diameter 115 Volts

The Fasco D335 is a compact shaded pole motor designed for HVAC and industrial applications requiring reliable low horsepower performance. It serves as a direct replacement for motors with similar specifications, providing efficient operation in air-over environments.

Key Specifications

Horsepower: 1/20 hp
RPM: 1550
Voltage: 115 Volts
Amperage: 2.1 amps
Enclosure: Open Ventilation, Air Over
Frame / Diameter: 4.4" Diameter
Shaft Dimensions: 8" x 1/2" x 8" Double Shaft
Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a belly band or stud mount with a bolt circle diameter of 3.89", allowing versatile installation options. The motor length excluding shafts measures 3 1/4", making it suitable for compact spaces. Its shaded pole design ensures quiet and efficient operation in air-over applications.
