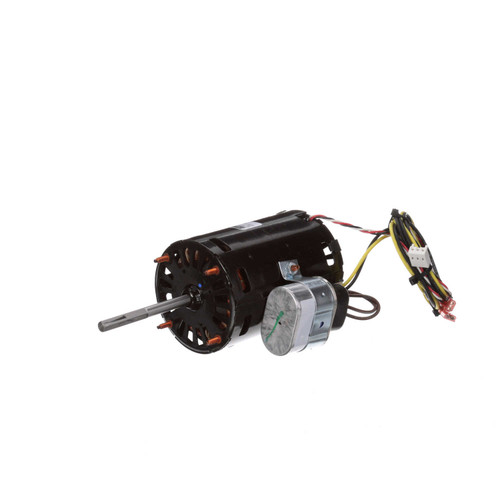

Fasco D1184 Motor | 1/16 hp 3450 RPM CCW 3.3" Diameter 460 Volts
Fasco D1184 Motor | 1/16 hp 3450 RPM CCW 3.3" Diameter 460 Volts
Fasco D1184 Motor | 1/16 hp 3450 RPM CCW 3.3" Diameter 460 Volts
Fasco D1184 Motor | 1/16 hp 3450 RPM CCW 3.3" Diameter 460 Volts
Fasco D1184 Motor | 1/16 hp 3450 RPM CCW 3.3" Diameter 460 Volts
Fasco D1184 Motor | 1/16 hp 3450 RPM CCW 3.3" Diameter 460 Volts

Fasco Motors

Fasco D1184 Motor | 1/16 hp 3450 RPM CCW 3.3" Diameter 460 Volts

(No reviews) Write a Review
$316.25
$280.54
SKU D1184
UPC 6.63E+11
Availability IN STOCK
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNT & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 460V
Horsepower 1/16 HP
RPM 3450
Phase Single Phase
Amperage 3 Amps
Bearings Ball Bearings
Mounting Stud
Adding to cart… The item has been added
Description
  • 1/16 hp 3450 RPM, .3 amps, 460 Volts Single Phase
  • Permanent Split Capacitor
  • Shaft: 5/16" x 3 1/3"; Rotation = CCWSE
  • Stud Mount - Bolt Circle - 2.85"
  • Ball Bearings
  • Motor Length Less Shaft = 4 3/4"
  • 1 Year Manufacture Warranty

Application: Flue Exhaust Draft Booster Blower Motor. Includes 4 MFD Capacitor. Has Hall Effect Sensor. Reference Information: Carrier BDP HC30GB460, HC30GB462, JF1H091, JF1H101. York 024-24115-009. Replaces AO Smith/Century 9625. Dayton 48X971, 48GN75. Carrier Sensor Assembly (50HJ 401 484) not included.

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNT & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 460V
Horsepower 1/16 HP
RPM 3450
Phase Single Phase
Amperage 3 Amps
Bearings Ball Bearings
Mounting Stud
!
