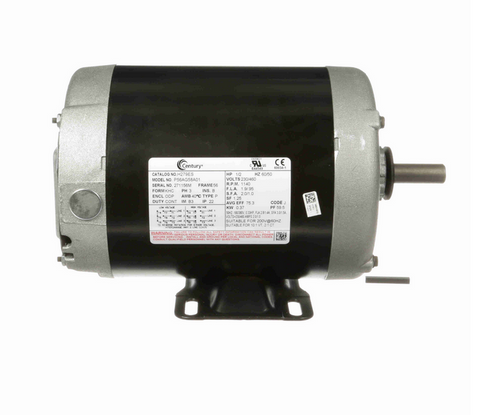

H279ES Century 1/2 hp 1200 RPM 3-Phase 56 Frame ODP (rigid base) 230/460V Century Motor # H279ES
H279ES Century 1/2 hp 1200 RPM 3-Phase 56 Frame ODP (rigid base) 230/460V Century Motor # H279ES
H279ES Century 1/2 hp 1200 RPM 3-Phase 56 Frame ODP (rigid base) 230/460V Century Motor # H279ES
H279ES Century 1/2 hp 1200 RPM 3-Phase 56 Frame ODP (rigid base) 230/460V Century Motor # H279ES
H279ES Century 1/2 hp 1200 RPM 3-Phase 56 Frame ODP (rigid base) 230/460V Century Motor # H279ES
H279ES Century 1/2 hp 1200 RPM 3-Phase 56 Frame ODP (rigid base) 230/460V Century Motor # H279ES
H279ES Century 1/2 hp 1200 RPM 3-Phase 56 Frame ODP (rigid base) 230/460V Century Motor # H279ES
H279ES Century 1/2 hp 1200 RPM 3-Phase 56 Frame ODP (rigid base) 230/460V Century Motor # H279ES

Century Electric Motor

H279ES Century 1/2 hp 1200 RPM 3-Phase 56 Frame ODP (rigid base) 230/460V Century Motor # H279ES

(No reviews) Write a Review
$481.16
$407.79
SKU H279ES
UPC 7.87E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 1/2 HP
RPM 1200
Phase Three Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 1.9/0.95 Amps
Bearings Ball Bearings
Service Factor 1.35
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/2 hp 1200 RPM, 1.9/0.95 amps 230/460 Volts 60hz. Three Phase
  • NEMA 56 frame, Keyed Shaft 5/8" Diameter x 1 5/8"
  • Service Factor: 1.35, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motors are for use in situations not having special requirements. This is a three phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip Proof. H279ES

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 1/2 HP
RPM 1200
Phase Three Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 1.9/0.95 Amps
Bearings Ball Bearings
Service Factor 1.35
Insulation Class Class B
Mounting Rigid Base
!
