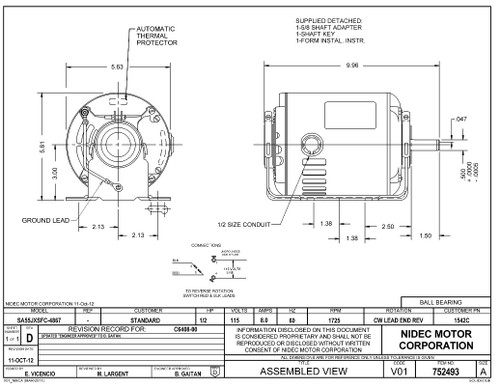

1542C Nidec | 1/2 hp 1725 RPM 1-Speed 115V; 5.6" Blower Motor

1542C Nidec | 1/2 hp 1725 RPM 1-Speed 115V; 5.6" Blower Motor

This 1542C Nidec blower motor is a reliable replacement designed for HVAC and industrial applications requiring a 1/2 horsepower, single-speed motor. It operates at 1725 RPM with a 115V power supply, suitable for continuous duty in open drip proof environments.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1725
• Voltage: 115V
• Amperage: 8.0 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: 5.6" diameter
• Shaft Dimensions: 1/2" x 1.5"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This split-phase motor features automatic overload protection and Class B insulation, designed to operate efficiently at ambient temperatures up to 40°C and 60 Hz frequency. It includes a resilient base mount for secure installation and a motor case length of 8.5 inches to fit standard blower assemblies.

Warranty

1 Year Manufacturer Warranty
